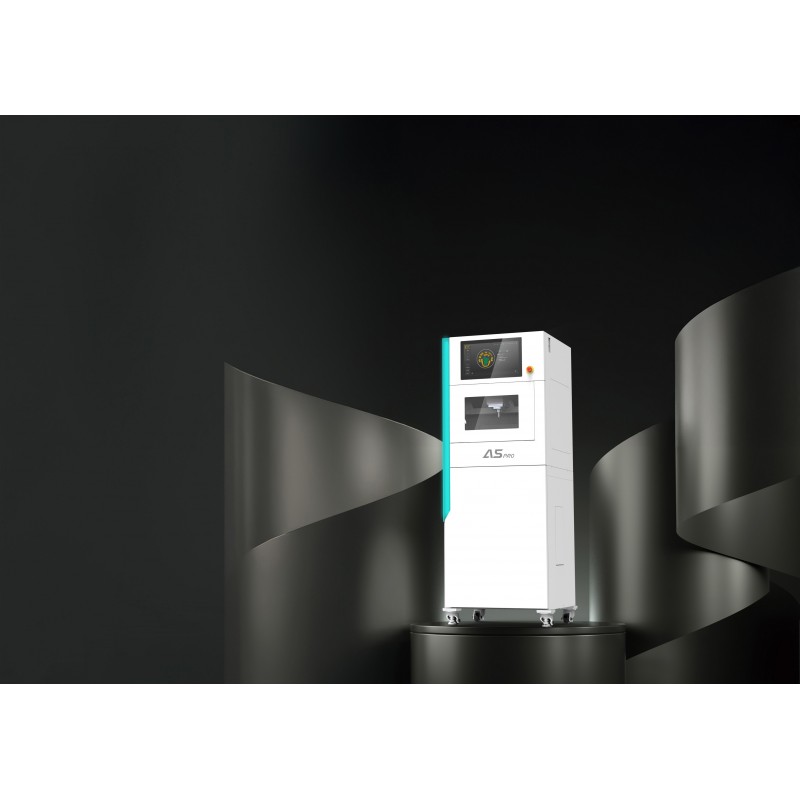

Model

A5 PRO

Axis

5 Axis

Processing

Wet & Dry

Max. RPM

80,000

Spindle Motor Type

DC

Spindle Power (Continuous)

1.0kw

Spindle Power (Max)

1.37kw

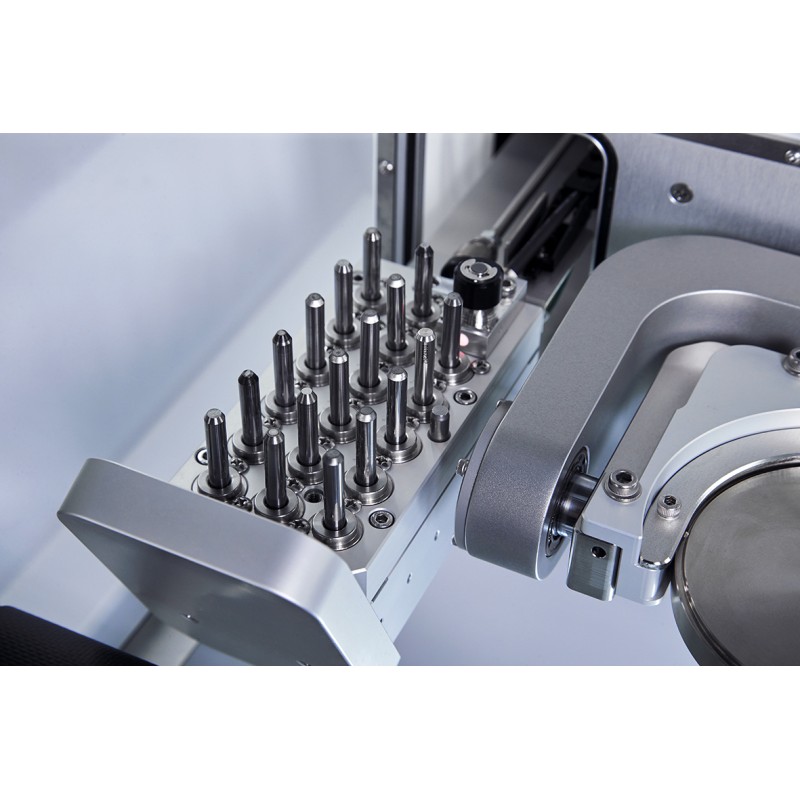

A.T.C

17

Tool Shank(mm)

Ø6

Motor

Servo

Drive Mechanism

Ball Screw

Way System

LinearGuide

Total Size(W*D*H)

645*795*1765

Weight (Machine/Table)

186kg/70kg

Travel

X, Y, Z axis

250*110*136

A / B axis

360˚ / +35˚~ -35˚

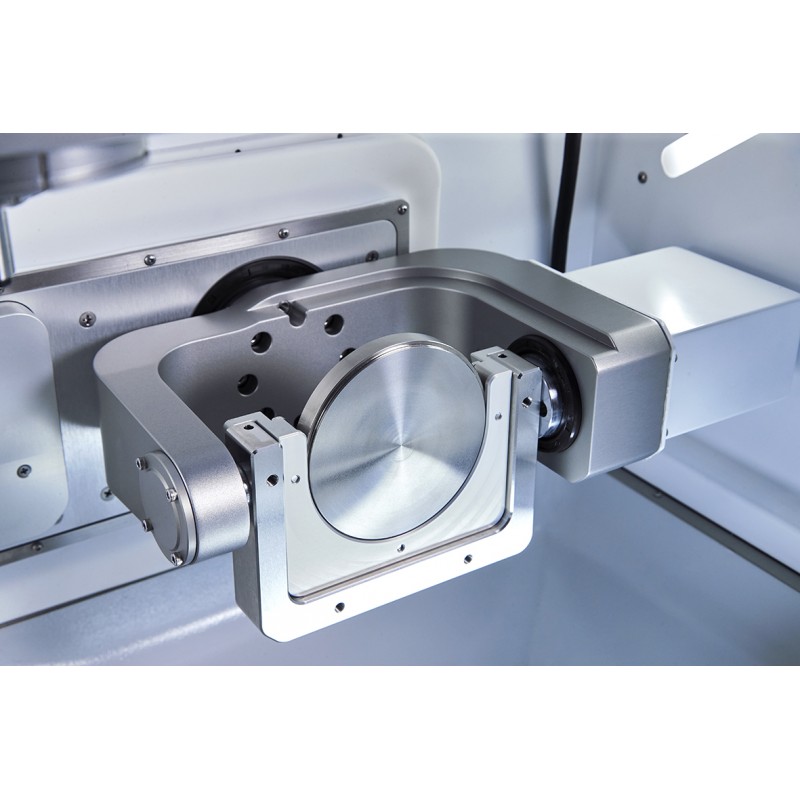

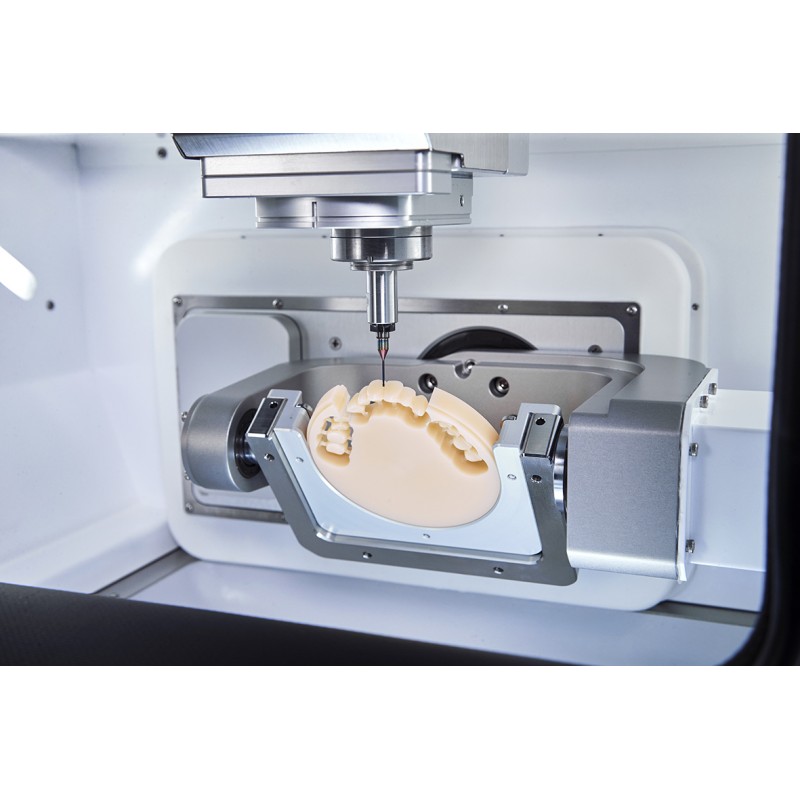

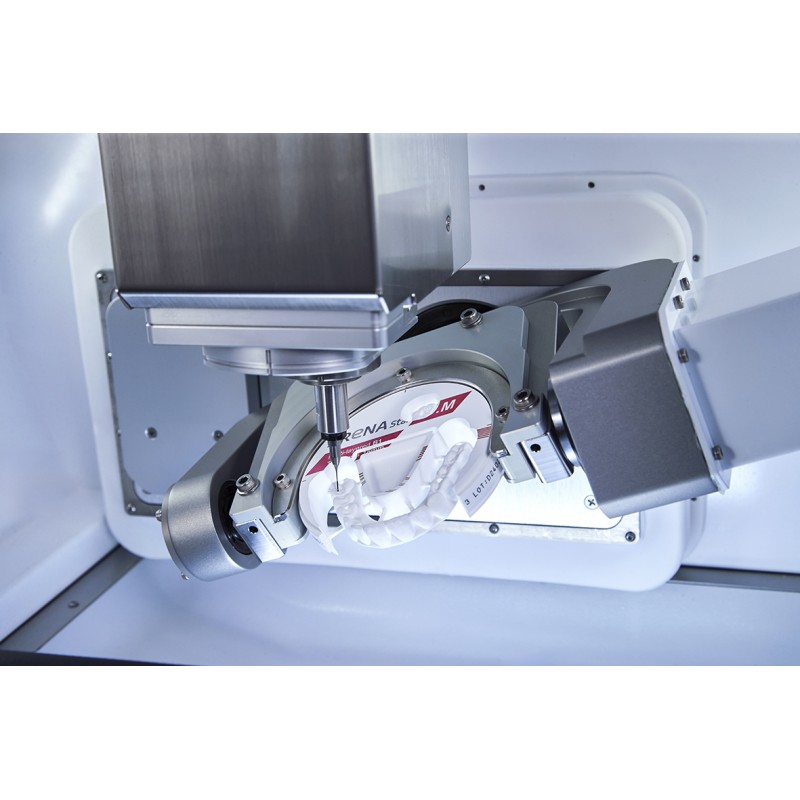

Disk jig or Cartridge Type

C / OCC / GLASS CERAMIC

Jig exchange

Manual

Jig Clamping system

Bolt Clamping
